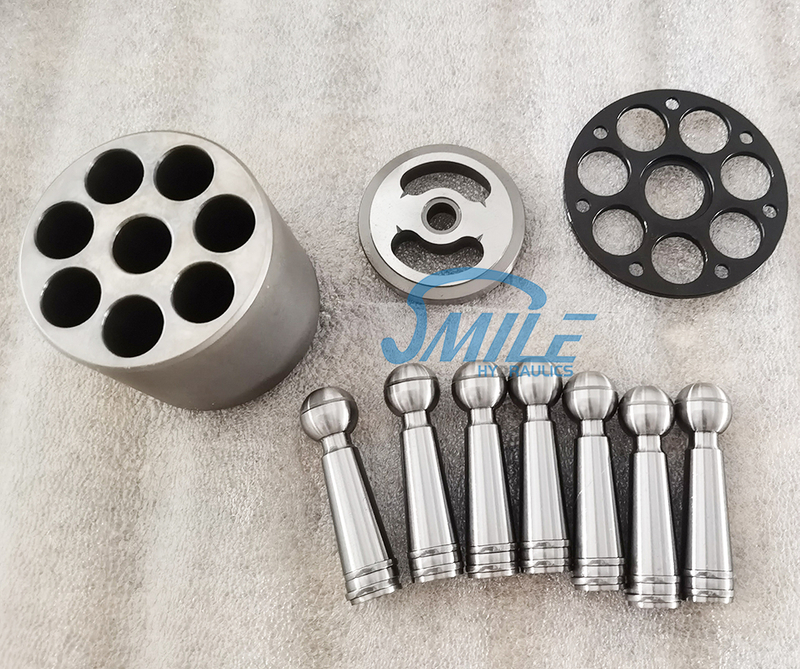

Replacement Rexroth A2FO series pump parts:
A2FO Models:
A2FO10 A2FO12 A2FO16 A2FO23 A2FO28 A2FO32 A2FO45 A2FO56 A2FO63 A2FO80 A2FO90 A2FO107 A2FO125 A2FO160 A2FO180 A2FO200 A2FO250 A2FO355
A2FM Models:
A2FM23 A2FM28 A2FM32 A2FM45 A2FM56 A2FM63 A2FM80 A2FM107 A2FM125 A2FM160 A2FM180 A2FM200 A2FM250 A2FM355
A2FE Models:
A2FE23 A2FE28 A2FE32 A2FE45 A2FE56 A2FE63 A2FE80 A2FE107 A2FE125 A2FE160 A2FE180 A2FE200 A2FE250 A2FE355

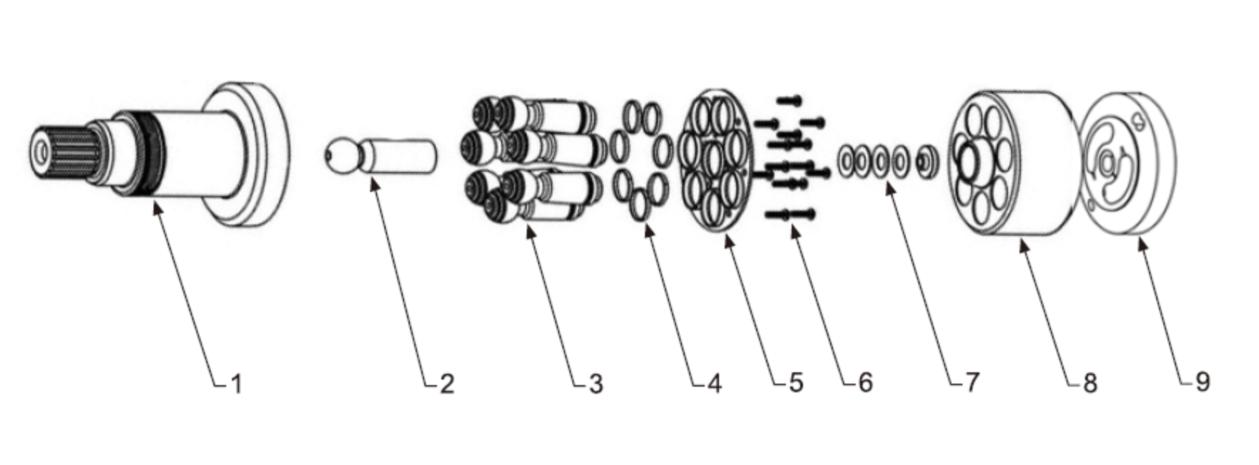

| INDEX | DESCRIPTION | QTY(PCS/SET) |
| 1 | DRIVE SHAFT | 1 |
| 2 | CENTER PIN | 1 |

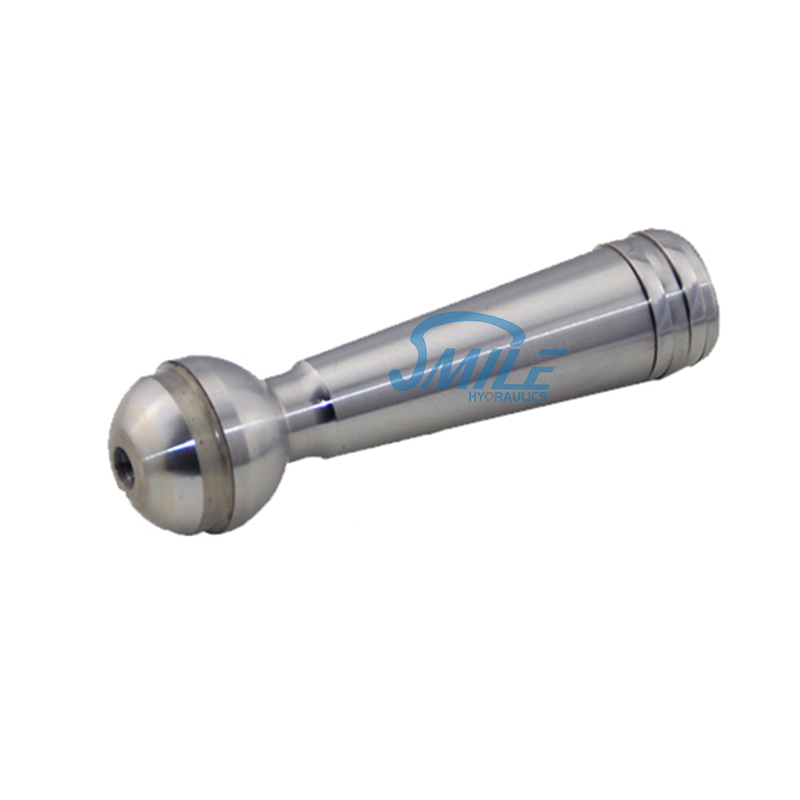

| 3 | PISTON | 7 |
| 4 | RING | 14 |
| 5 | SET PLATE | 1 |
| 6 | SCREW | 14 |
| 7 | DISC SPRING | 4 |
| 8 | CYLINDER BLOCK | 1 |
| 9 | VALVE PLATE R/L/M | 1 |
| SEL KIT | 1 |

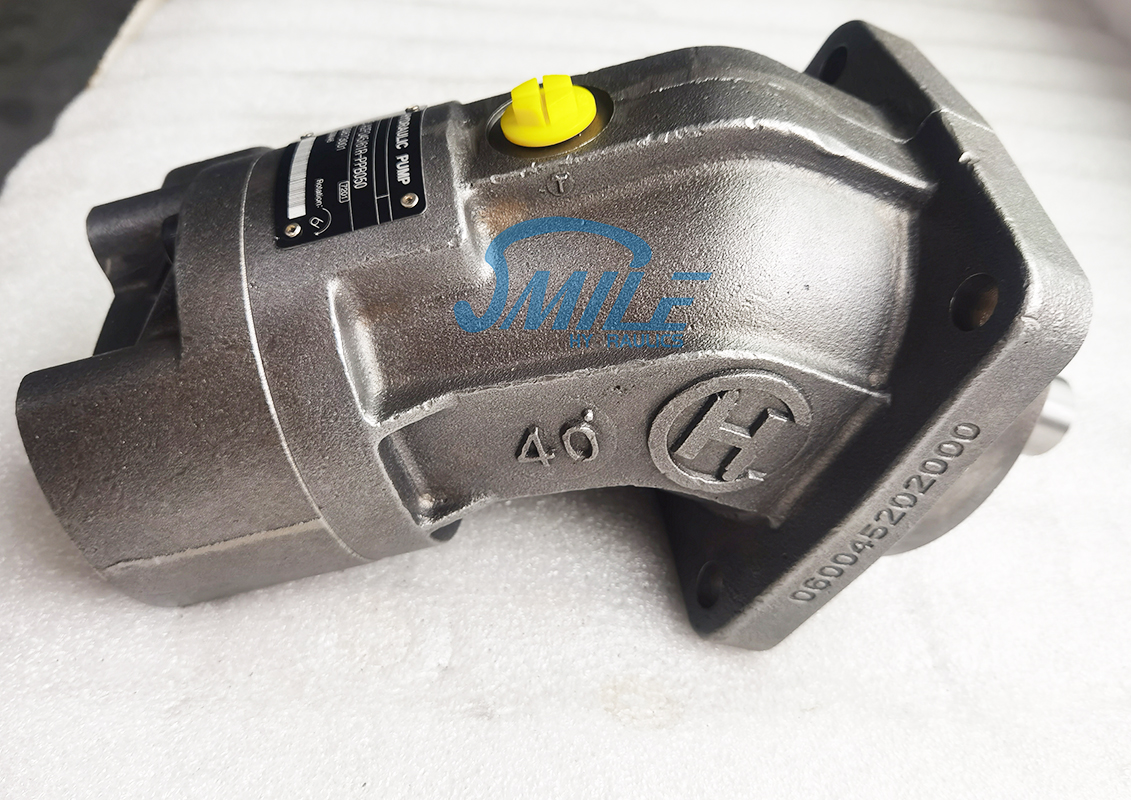

A2FO series pumps are also available as
A2FO32/61L-VAB05
A2FO45/61R-VPB05
A2FO63/61R-PBB05
A2FO80/61L-VAB05
A2FO107/61R-VPB05
A2FO125/61R-PBB05
A2FO180/61R-PBB05
A2FO200/63R-VBB05
A2FO250/60R-VPB05
A2FM28/61W-VAB040
A2FM23/61W-VPB02

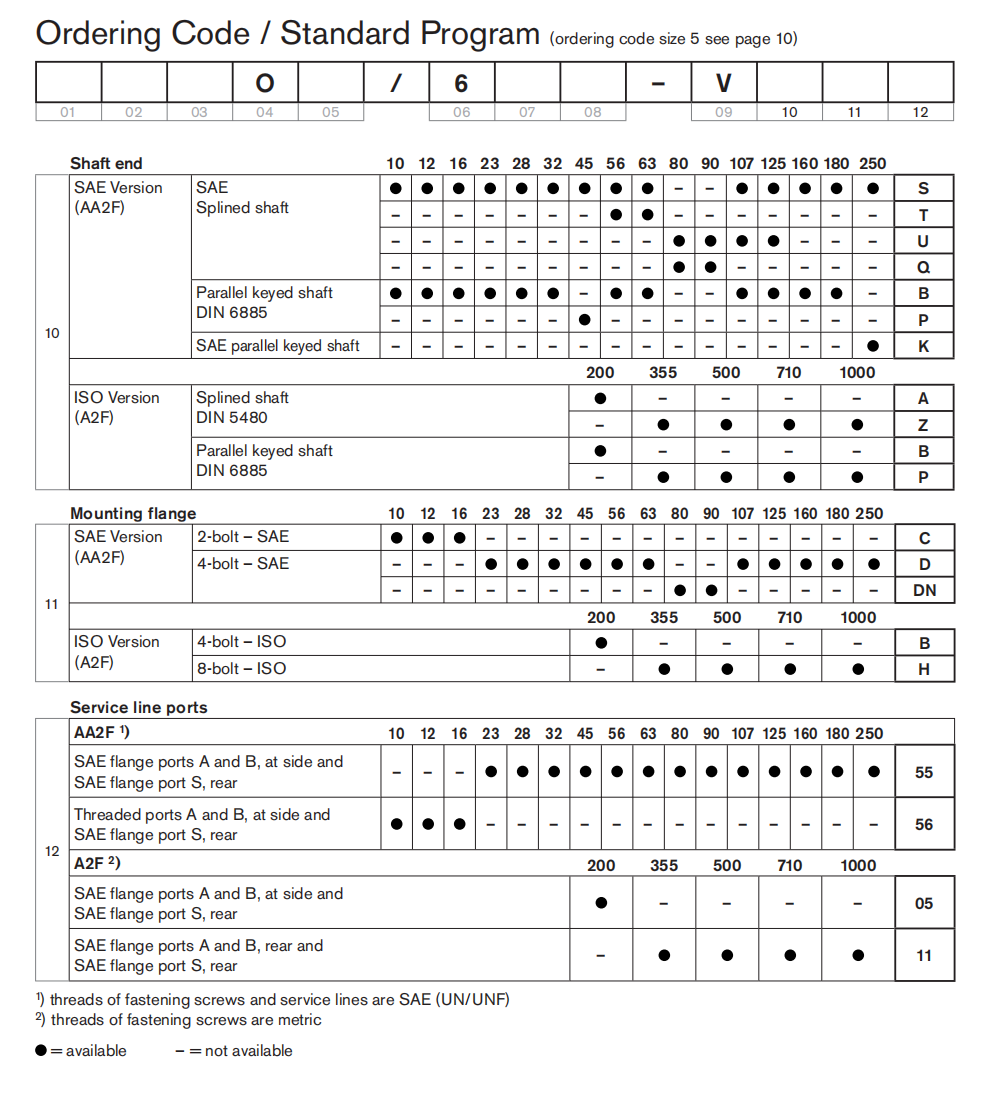

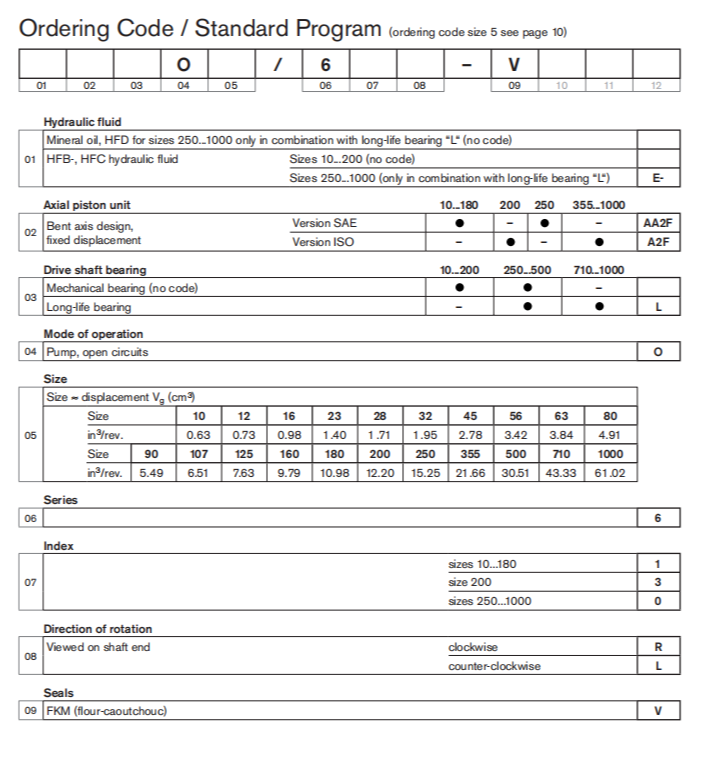

A2FO Ordering code:
